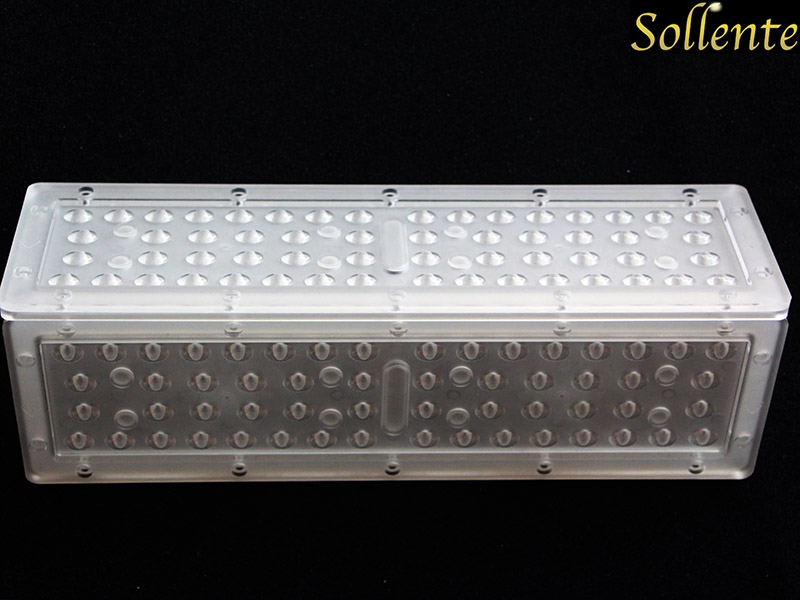

30W Polarized PC Street Light Multi Lens Array For High Way Led Lamp

Name: 30W Polarized PC Street Light Multi Lens Array For High Way Led Lamp
Brand: Sollente
Price: 1 USD

Buy cheap 30W Polarized PC Street Light Multi Lens Array For High Way Led Lamp product

Brand Name : Sollente

Model Number : SOE-SL56W-155x80

Place of Origin : China

MOQ : 10 sets

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 10000 pcs / week

Delivery Time : 3-14 working days

Packaging Details : Carton Box

Product Name : Polarized Light Led Opticla Array Lens With Optimal Light Distribution

Lens Dimension : L256.6*W78.6*7.1mm

Heat Sink : L310*W80*H43mm

Beam Angle : 155x80 degree Polarized 34 degree

Match Led : SMD 3030 OSRAM, , Nichia,

Material : Optical Grade PC

Working Temperature : -35℃ +100℃

Efficiency : 91%

Contact Now

Polarized Light Led Opticla Array Lens With Optimal Light Distribution

Quick Details:

1. Dimension: L256.6*W78.6*7.1mm

2. Beam Angle: 155x80 degree Polarized 34 degree

3. Match Led: SMD 3030 , OSRAM S2 , Lumileds 2D, 3528

4. Materials : Optical Grade PC, Aluminm PCB

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency: >91%

Specifications:

Product Name	Polarized Light Led Opticla Array Lens With Optimal Light Distribution
Model No	SOE-SL56W-155x80
Main parts	Led Lens+ Silicone gasket + AL MCPCB mounting leds +Waterproof led constant driver
Lens Material	PC Optical
MOQ	10pcs
Lens size	256.6x78.6x7.1mm
PCB Size	233x55x1.5mm
Driver enclosure	plastic or aluminum case for choice
PCB Circuit	7 series 8 parallel or customized as request
Certificate	ROHS, SGS,CE
Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market	Europe, South America,North America, Asia

Led Street Light Lens Drawing:

30W Polarized PC Street Light Multi Lens Array For High Way Led Lamp

Application:

Various types of Tennis court Area Lighting. High light efficiency, long life time, excellent color rendering index, stable light, no glare, energy-saving, wide range of color temperature, smooth visual feel, stable light output, etc.

30W Polarized PC Street Light Multi Lens Array For High Way Led Lamp
