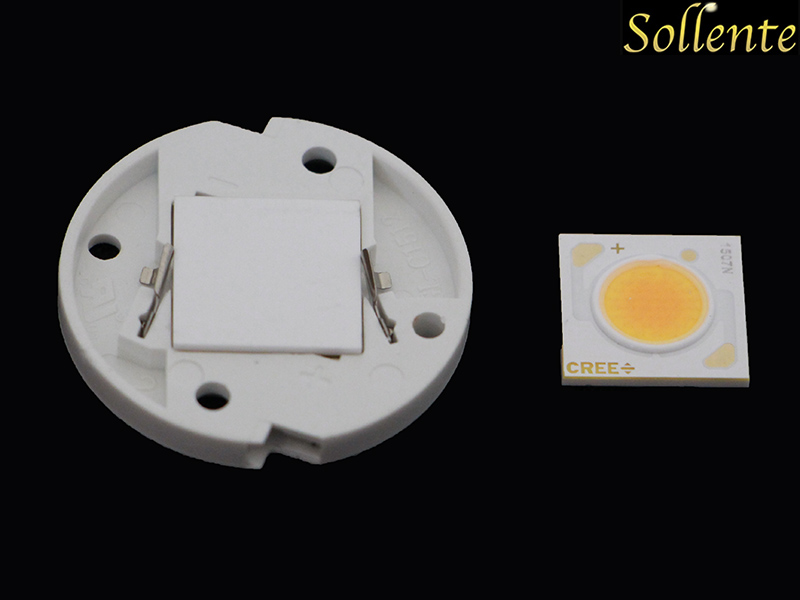

35mm Diameter COB Led Holder Nickel Plated With Cree LED CXA 1507
Quick Details:
1. Dimension: Diameter 35mm H4.15mm
2. Match Led: CREE CXA 1507 1512 1520
COB Led Array base 16x16mm Luminous surface diameter 11mm
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
| Product Model | C1512 |
| | 72 V |
| Amperage Rating | 3.6 |
| Weight | 3g |
| Screw Size | M3 |
| Wire Strip Length | 6mm (.24") |
| Wire | 18-22AWG Push-In (.32-.81mm2) |
| Body Material | PBT UL94 V-0 |
| Contacts | Beryllium Copper Nickel Plated |
| Holding Clip | Stainless Steel |
| Screw Torque (Max) | 10 LBS |
| Temp Rating | 155C |
| RoHS Compliant | Yes |
| Package Quantity | 1,000 per carton |
| Packaging | Plastic Trays |
| Array Source | CREE |
| Array Series | CREE CXA 1507 1512 1520 |
| UL File # | E476326 |
It's a single piece, solderless connector for CREE CXA 1507 1512 1520 or COB Led Array base 16x16mm Luminous surface diameter 11mm
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.
The COB LED Holder for the CITIZEN and EDISON Array is an electrical connector and mechanical holder to simplify installation of the COB LED Array without solder connections.
Advantages
LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.

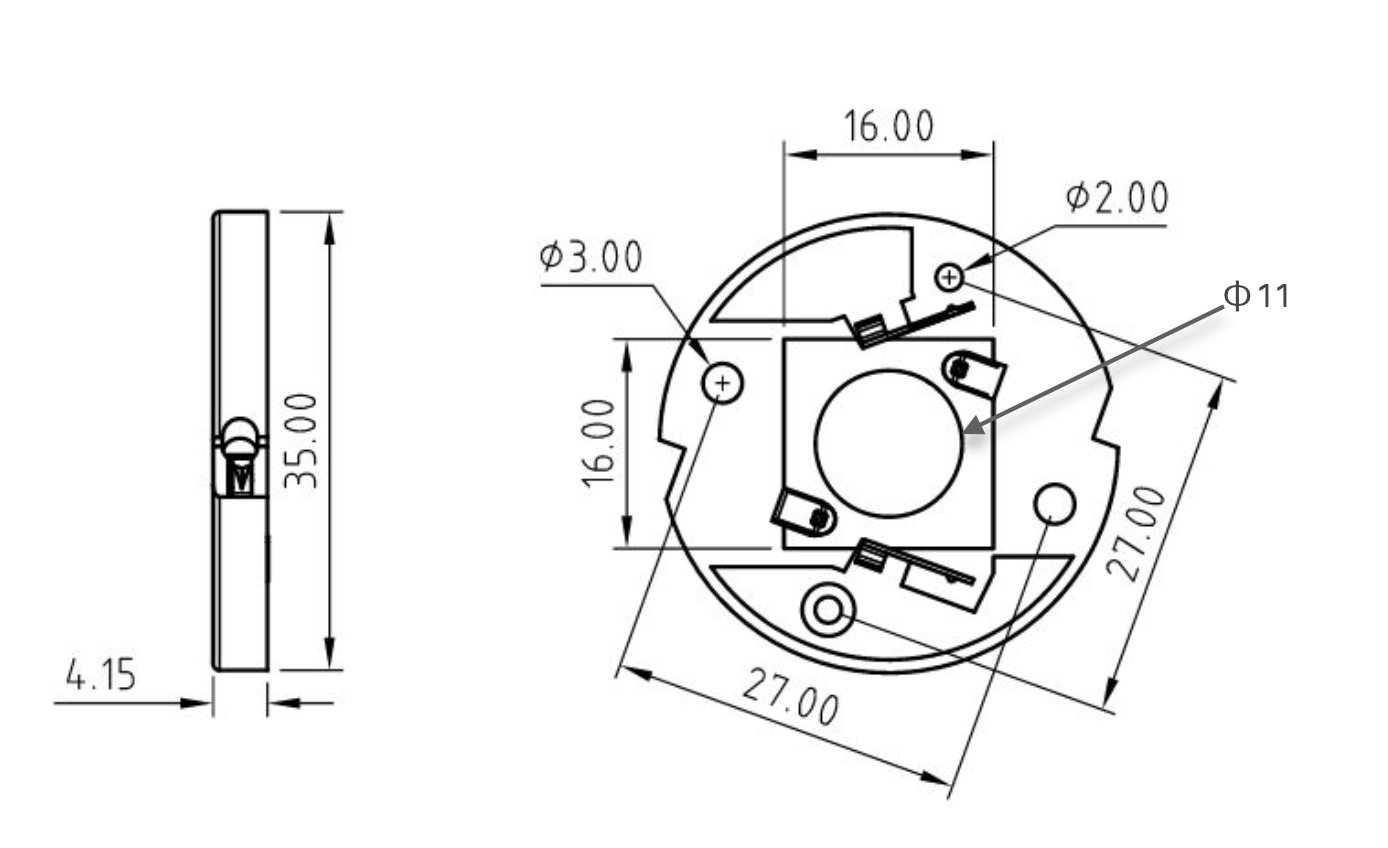

1512 COB HOLDER Drawing:
Related COB HOLDER:
| Model No. | Lens Dimensions | Match Led |
| C1512
| D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
| C1816
| D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
| C1830
| D35mm*H4.15mm | CXA1830 |
| C2520
| D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
| C3050
| D44mm*H4.15mm | CXA3050, CXA3070 |
| CT1926
| D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
| E1313 | D36mm*H4mm | Citizen Series: CLL022, CLU024, CLU026
Edison Series: HM05, HM09, HM13 |
| E1919 | D36mm*H4mm | Citizen Series: CLL032, CLU034, CLU036
Edison Series: HM16, HM24, HM30 |
