PBT Material LED Array Holder 34mm For LED Industrial COB Light Modules

Name: PBT Material LED Array Holder 34mm For LED Industrial COB Light Modules
Brand: Sollente
Price: 1 USD

Buy cheap PBT Material LED Array Holder 34mm For LED Industrial COB Light Modules product

Brand Name : Sollente

Model Number : GL1304

Place of Origin : China

MOQ : 1000 pcs

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 100000 pcs / week

Delivery Time : 10-18 working days

Packaging Details : Carton Box

Product Name : PBT Material 34mm COB LED Holder for Led Industrial COB Light Modules

Diameter : 34mm

Height : 3.6mm

Color : White

Certificate : cRU, UL

Material : PBT V0

Wire Spec : 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)

Match Led : CITIZEN

Contact Now

PBT Material 34mm COB LED Holder for Led Industrial COB Light Modules

Quick Details:

1. Dimension: Diameter 34mm H3.6mm
2. Match Led: CITIZEN LED
COB Led Array base 13.1x13.1mm Luminous surface diameter 8mm
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)

Specification:

Product Model

GL1304

Voltage Rating

72 V

Amperage Rating

3.6

Weight

Screw Size

Wire Strip Length

6mm (.24")

Wire

18-22AWG Push-In (.32-.81mm2)

Body Material

PBT UL94 V-0

Contacts

Beryllium Copper Nickel Plated

Holding Clip

Stainless Steel

Screw Torque (Max)

10 LBS

Temp Rating

155C

RoHS Compliant

Yes

Package Quantity

1,000 per carton

Packaging

Plastic Trays

Array Source

CITIZEN

Array Series

UL File #

E476326

It's a single piece, solderless connector for CITIZEN or COB Led Array base 13.1x13.1mm Luminous surface diameter 8mm

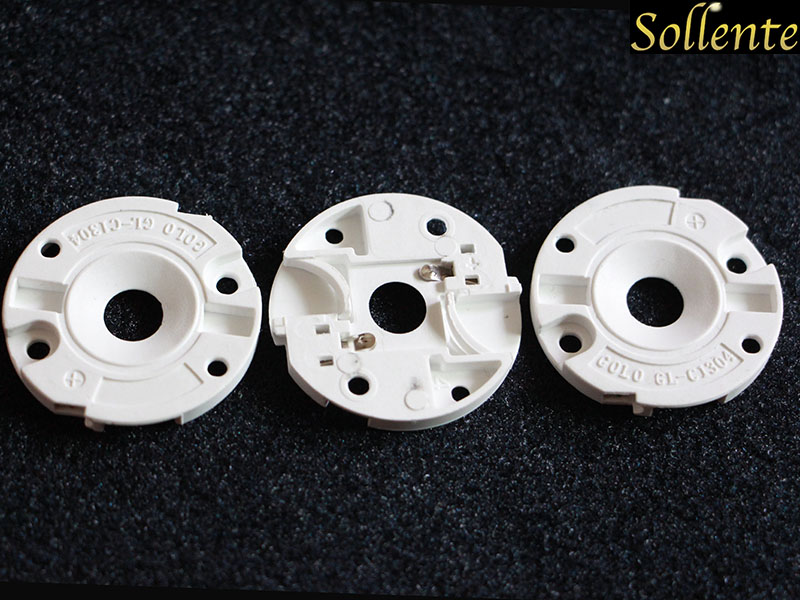

COB HOLDER Picture:
PBT Material LED Array Holder 34mm For LED Industrial COB Light Modules

Related COB HOLDER:

Model No.	Lens Dimensions	Match Led
SOE-CH1512	D35mm*H4.15mm	CXA1507, CXA1512, CXA1520
SOE-CH1816	D35mm*H4.15mm	CXA1816, CXB1820, CXA1850
SOE-CH1830	D35mm*H4.15mm	CXA1830
SOE-CH2520	D39mm*H4.15mm	CXA2520, CXB2530, CXA2540, CXA2590
SOE-CH3050	D44mm*H4.15mm	CXA3050, CXA3070
SOE-CH1926	D35mm*H4.15mm	Citizen Series: AC COB CLL296/297/298
SOE-CH1313	D36mm*H4mm	Citizen Series: CLL022, CLU024, CLU026 Edison Series: HM05, HM09, HM13
SOE-CH1919	D36mm*H4mm	Citizen Series: CLL032, CLU034, CLU036 Edison Series: HM16, HM24, HM30

FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18 working days.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
